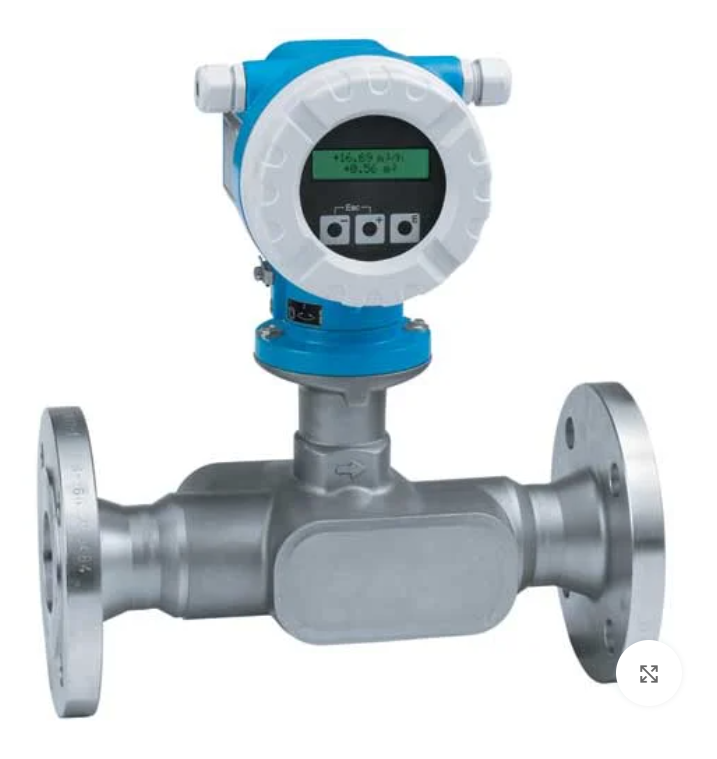

Endress+Hauser Ultrasonic Flowmeter 92F25-DSEA1A

The 92F25-DSEA1A ultrasonic flowmeter from Eners Hauser is an advanced instrument for precise measurement of fluid flow in various industries. Using ultrasonic technology, this device allows for high-precision measurement of conductive and non-conductive liquids. The robust design and diverse capabilities of this flowmeter make it an ideal choice for industrial applications.

Key features of the 92F25-DSEA1A ultrasonic flowmeter:

Precise flow measurement: With an accuracy of 0.5%, suitable for sensitive industrial applications.
Wide operating temperature range: Capable of operating in fluid temperatures from -40 to 150 ° C.
High pressure tolerance: Suitable for processes with pressures up to PN40.
Robust housing: Made of aluminum with IP67 protection rating, resistant to harsh environmental conditions.
Standard flange connection: With stainless steel material, suitable for industrial connections.
Various outputs: 4-20 mA output with HART protocol, can be connected to various control systems.
As an efficient flow transmitter, this flowmeter helps to improve process control and increase productivity in industries by providing accurate and stable information. Considering the above features, the 92F25-DSEA1A ultrasonic flowmeter is a suitable choice for oil and gas, petrochemical, water and wastewater industries and other industries requiring accurate fluid flow measurement.

General Specifications
Product Code
Country of Manufacture Germany
New Product Condition
Original Material
Technical Specifications
Model and Manufacturer 92F25-DSEA1AA0A4AA _ Endress+Hauser
Accuracy 0.5%
Size (DN) 25
Pressure Class (PN) 16
Size (Inch) “1
Body Material Aluminum
Connection Type Flange
Connection Material
Stainless steel
Process Temperature ℃150⁓40-
Display Type Digital
Communication Protocol 4-20mA(HART)
Voltage 12-30Vdc
Body Protection Degree (IP) IP67
Explosion Proof (Ex) Approval
