3-Piece Ball Valve Series 5000/6000
Enjoy Zero Leakage and Easy Maintenance with Our Reliable Solutions
Stainless Steel Construction and a Safety Locking Handle for Enhanced Operational Safety

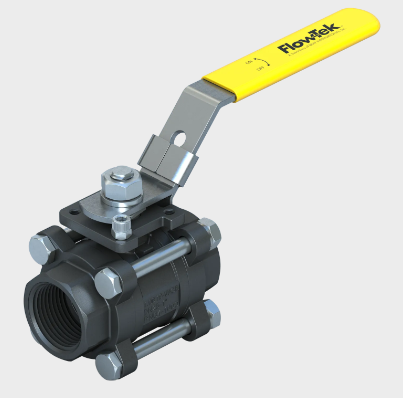

The Bray Series 5000/6000 Full-Port, three-piece, Quarter-turn Ball Valve is engineered to deliver all the benefits of three-piece ball valves at an economical price including, a heavy-duty, internal-entry blowout proof stem and adjustable, live load packing that ensures zero leakage, low torque, and extended service life.
Available in both investment cast CF8M (316L) Stainless Steel or WCB Carbon Steel, series 5000/6000 valves include a swing-out center section for easy in-line maintenance. All body castings are marked with a foundry heat number for full traceability, ensuring quality and reliability.
For manual valve operation, series 5000/6000 valves feature stainless steel safety trigger locking handles and travel stops that limit handle movement to 90°. The integrally cast ISO 5211 mounting pad ensures seamless alignment and simplified installation of actuators, gear operators, and other actuation and control accessories.
Available with an industry leading warranty, and a reputation for reliability, Bray Series 5000/6000 series three-piece ball valve are the ideal solution for a wide variety of industrial applications.
Description
Size Range
¼ – 4″ (8mm – 100mm)
Body Materials
Series 5000: Stainless Steel, Series 6000: Carbon Steel
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Stem Materials
316
Maximum Allowable Operating Pressure
½ – 2″ 1000 psi CWP (8 – 50mm 69 Bar),
2½ – 4″ 800 psi CWP (65 – 100mm 55 Bar)
2½ – 4″ 800 psi CWP (65 – 100mm 55 Bar)
Seat Materials
RPTFE
Shutoff Rating
MSS-SP 72
Ball Materials
316
Body Style
Three Piece
Design Standard
ASME B16.34
End Connections
Threaded (ASME B1.20.1 NPT), Socket Weld (ASME B16.11)
Testing Standard
API 598
Ports
Full Port
Face to Face
Manufacturers standard (see catalog)
applications
Process, OEM Equipment
Reviews (0)
Shipping & Delivery
Related products
3-Piece Ball Valve Series 7000/8000
Durable Construction for Demanding Uses
Resilient Three-Piece Ball Valves Developed for Industrial Settings
The Bray Series 7000/8000 3-piece Ball Valves provide maximum flexibility with threaded, Socket weld, butt weld and flanged end connections and a variety of high-performance seat materials.
Series 7000/8000 feature an integrated actuation mounting pad and available optional accessories and trims including, a media containment unit for fugitive emissions, internal cavity fillers, control valve inserts for characterized control valve applications, and internal electro-polishing for food handling.
The three-piece body design allows for easy in-line maintenance with replaceable components for lower maintenance cost and lower total cost of ownership across the life of the valve.
Resilient Seated Butterfly Valve Series 20/21
Resilient Seated Valves for High Cv and Low Pressure Drop
Enhance Flow Efficiency with Bray’s Resilient Seated Valves
Reliable, Certified Valves for Food, Beverage, and Chemical Systems
The Series 20/21 resilient seated butterfly valve surpasses the high standards required in food and beverage valve applications. Bray's Series 20 valve features a wafer body design with flange locating holes, and the Series 21 is lug version provides dead-end service capability.
- Food and Beverage & Chemical applications
- One-piece disc/stem
- High Cv, low pressure drop
Resilient Seated Butterfly Valve Series 30/31
Size Range
NPS 2 to 20 / DN 50 to 500
NPS 14 to 20 / DN 350 to 500
Body Materials
Cast Iron, Ductile Iron, Carbon Steel, Aluminum
Temperature Range
-20°F to 400°F (-29°C to 204°C)
Maximum Allowable Operating Pressure
175 psi (12 Bar)
150 psi (10 Bar)
Stem Materials
Stainless Steel, Monel K500
Shutoff Rating
Bidirectional Bubble-tight
Design Standard
MSS SP-67, API 609, Category A
Flange Drilling
ASME B16.1 Class 125, ASME B16.5 Class 150, EN 1092 PN 10, 16
Testing Standard
MSS SP-61, API 598, EN 12266-1
Certifications
ABS, ATEX, Bureau Veritas, CRN, DNV, FDA 21 CFR 177.1550, NSF 61/372, PED, PE(S)R
Face to Face
MSS SP-67, API 609, Category A, EN 558
Body Style
Wafer, Lug
Seat Materials
BUNA-N, EPDM, FKM, Polyurethane
Disc Materials
Nylon 11 Coated Ductile Iron, Aluminum Bronze, Stainless Steel, Hastelloy®, Halar® Coated Ductile Iron
applications
Potable Water, Wastewater, Seawater, HVAC
Resilient Seated Butterfly Valve Series 31H
Size Range
NPS 2 to 20 / DN 50 to 500
Body Materials
Cast Iron, Ductile Iron
Temperature Range
-20°F to 250°F (-29°C to 121°C)
Stem Materials
416 Stainless Steel
Maximum Allowable Operating Pressure
250 psi (17.2 Bar)
Seat Materials
Bonded EPDM, Bonded BUNA-N
Shutoff Rating
Bidirectional Bubble-tight
Disc Materials
Nylon 11 Coated Ductile Iron, Aluminum Bronze, Stainless Steel
Body Style
Lug
Testing Standard
MSS SP-61, API 598, EN 12266-1, ISO 5208
Certifications
ABS, ATEX, CRN, DNV, NSF 61/372, PED, PE(S)R, SIL, TR CU
Face to Face
MSS SP-67, API 609 Category A, EN 558 Series 20
Flange Drilling
ASME B16.1 Class 125, ASME B16.5 Class 150, EN 1092 PN16
applications
High Pressure, HVAC, Dead-End service
Resilient Seated Butterfly Valve Series 31U
Fire-Certified Butterfly Valve for Industrial Fire Protection and Pressure Control
Valve with High Strength Stem Design and Bubble-Tight Shutoff
Reliable Bubble-Tight Shutoff for High-Pressure Environments in Industrial Use
Bray's Series 31U resilient seated butterfly valve is specifically designed for onshore and offshore fire protection where the applicable certification is D.O.T. 54 (UK Department of Trade). The series 31U is designed to withstand high line velocities and pressure.
Resilient Seated Butterfly Valve Series 35F
NSF/ANSI 61/372 Certified Valves for Potable Water and Industrial Applications
Potable Water NSF Certified Butterfly Valves
Superior Flow Control with Double Flanged Resilient Seated Butterfly Valves
Bray Series 35F large diameter resilient seated butterfly valves are designed specifically for high chloride services. Bray has carefully selected valve materials and designed features that optimize performance without sacrificing system efficiency. Series 35F valves offer rugged reliability in a light weight design.
Resilient Seated Butterfly Valve Series 36H
High-Pressure Resilient Seated Butterfly Valves for Optimal Performance
Bray Controls is proud to offer a line of superior quality, high pressure manual butterfly valves that meet many of today's requirements in the process industry. Series 36H large diameter, double flanged resilient seated butterfly valves are rated for dead end service, as well as drilled and tapped to meet ASME Class 125/150 and PN16 flanges.
Resilient Seated Butterfly Valve Series 3A/3AH
Industrial Butterfly Valve with Non-Corrosive Bushing and Enhanced Seal Technology
High-Pressure Shut-Off Up to 250 psi
Reliable Shut-Off Valve for Automation and Critical Pressure Control
Bray's Series 3A/3AH resilient seated butterfly valve features a double flanged design that is well-suited for dead-end service. International compatibility is a major design advantage of Bray's modular valve product lines.
The same valve is compatible with most world flange standards – ASME Class 125/150, BS 10 Tables D and E, BS 4504 NP 10/16, AS 2129 and JIS10. Additionally, Series 3A and 3AH valves are designed to comply with ISO 5752-Table 2 (EN558 Table 13) face-to-face and ISO 5211 actuator mounting flanges resulting in one valve design that can be used in a variety of world markets.
Reviews
There are no reviews yet.
